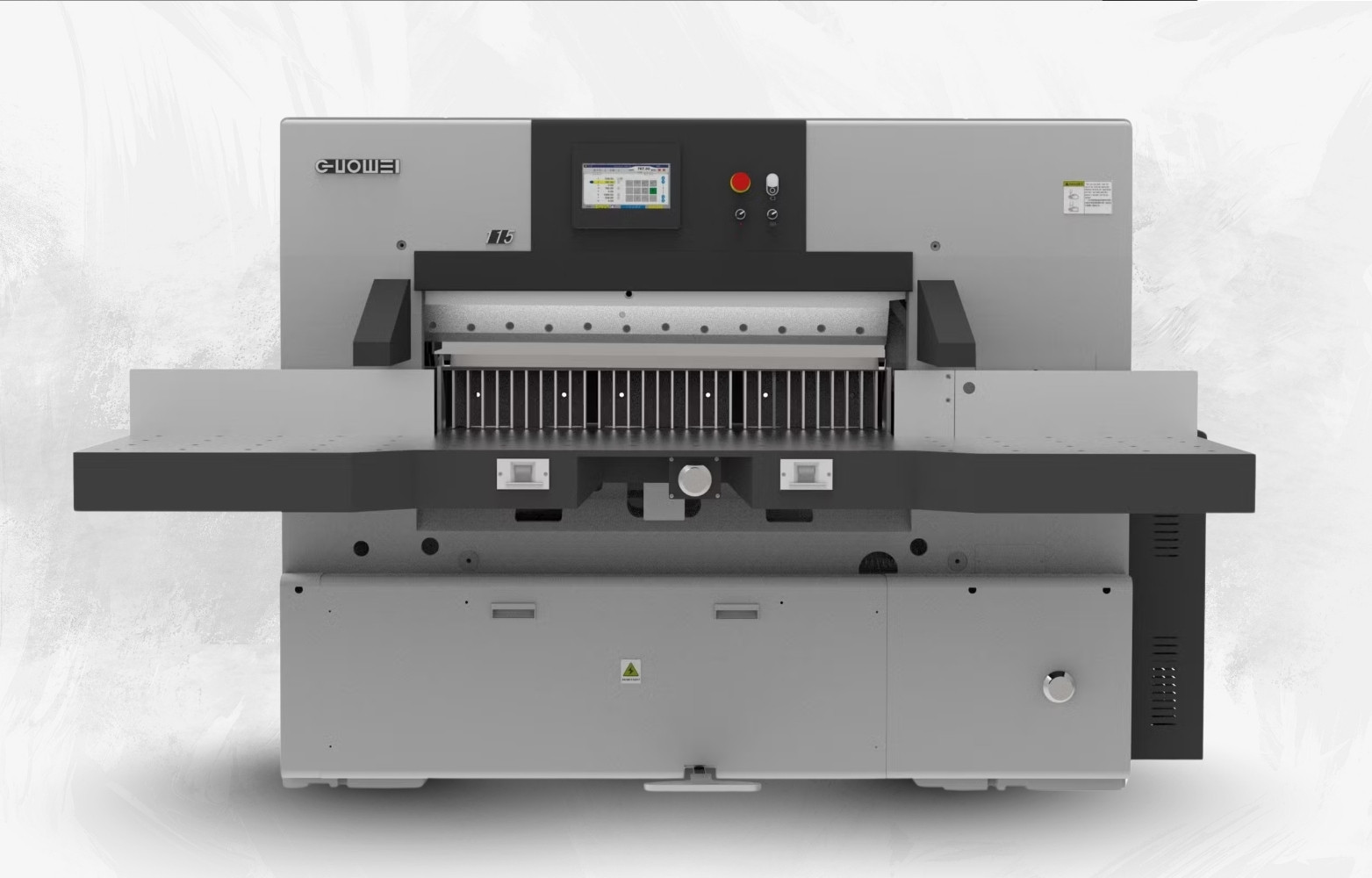

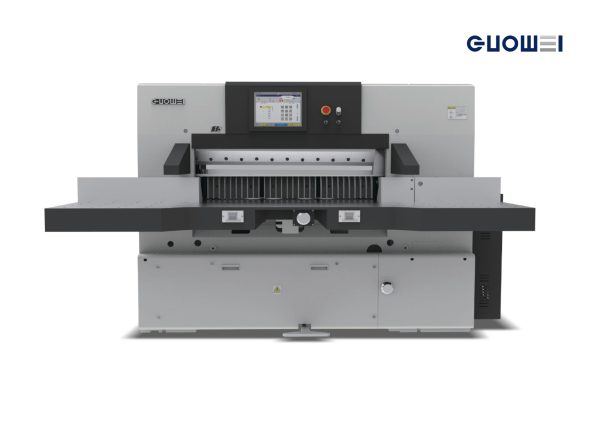

GUOWEI MODEL 115S
The Guowei 115S is an advanced, high-precision paper cutting (guillotine) machine designed for industrial printing and finishing operations.
Key Features & Highlights
Utilizes AC digital servo technology for smooth, consistent motion and precise control.

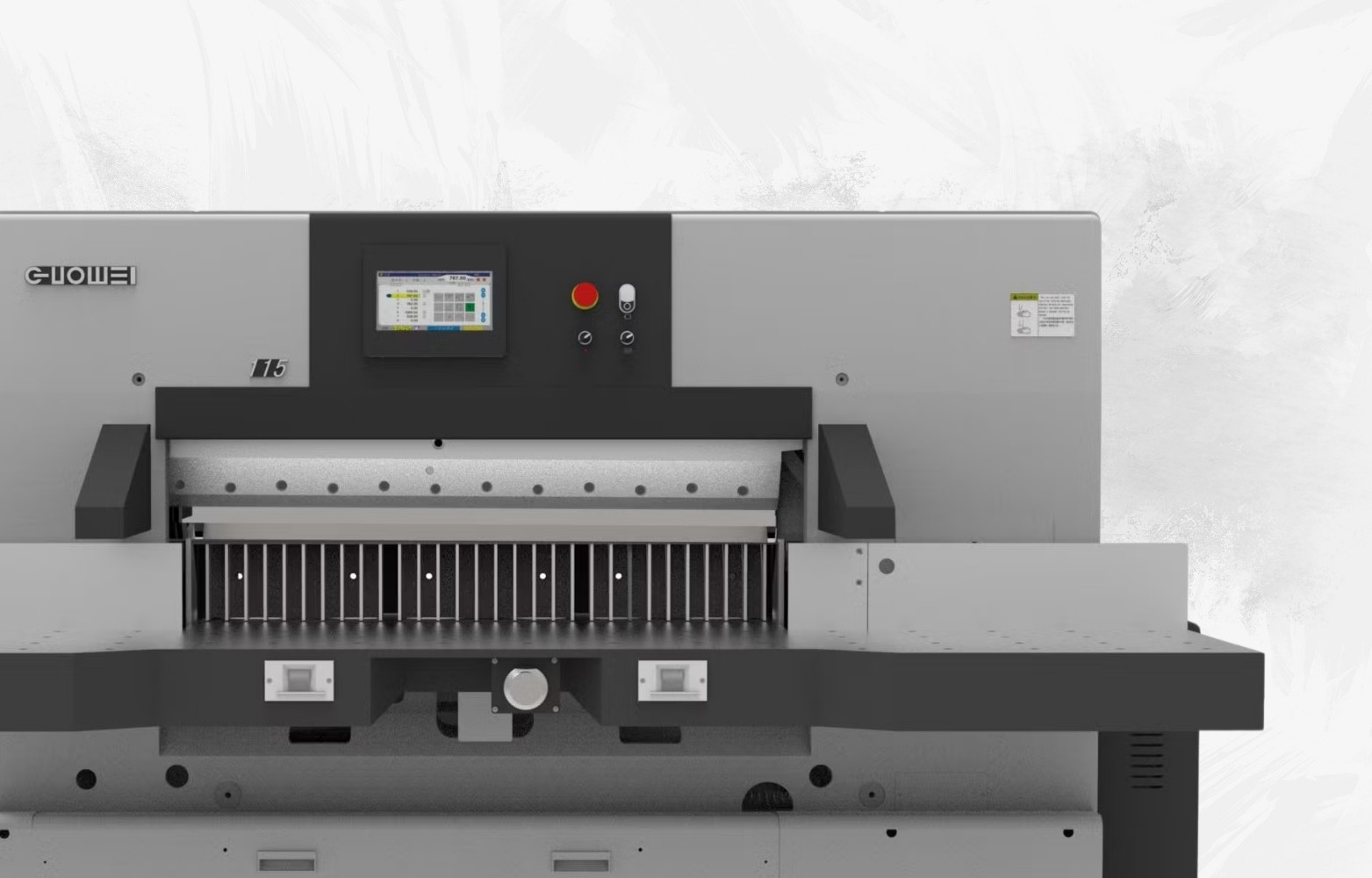

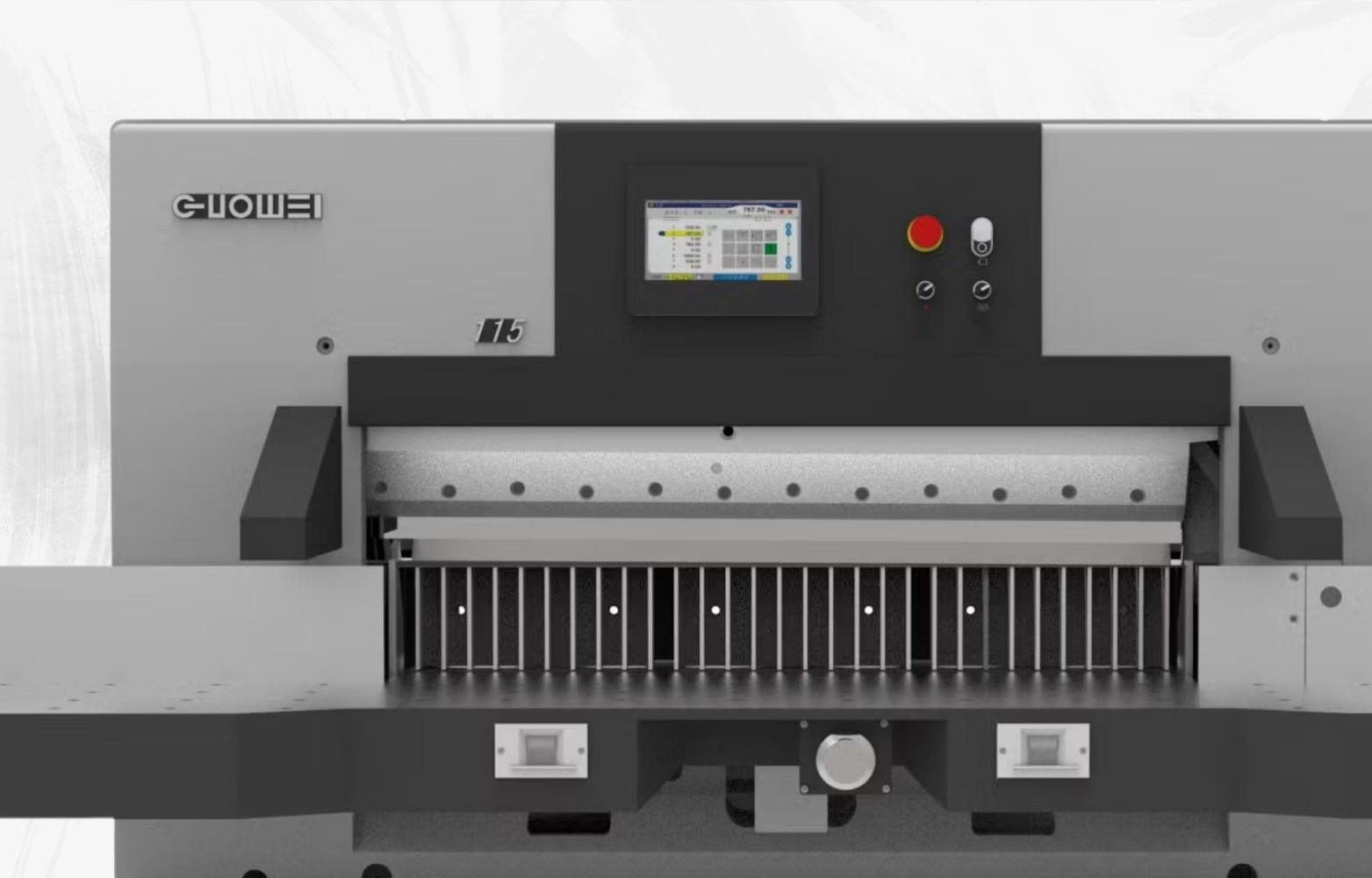

Equipped with a 15.6-inch color touchscreen interface, supporting human–machine interaction and ease of use.
Data resolution of 0.01 mm ensures extremely fine adjustments and cutting precision.
Supports up to 300 program units and over 30,000 different cutting positions.
Built-in self-diagnostic features help detect errors and monitor operating status in real time.
Suitable for cutting a variety of materials such as paper sheets, plastic sheets, foil, honeycomb boards, leather, carbon fiber laminate, packaging sheets, etc.
Adopts hydraulic components from reputed brands (e.g. Japanese origin), ball lead screws, linear guide rails, and high-quality imported bearings to reduce wear and maintenance.

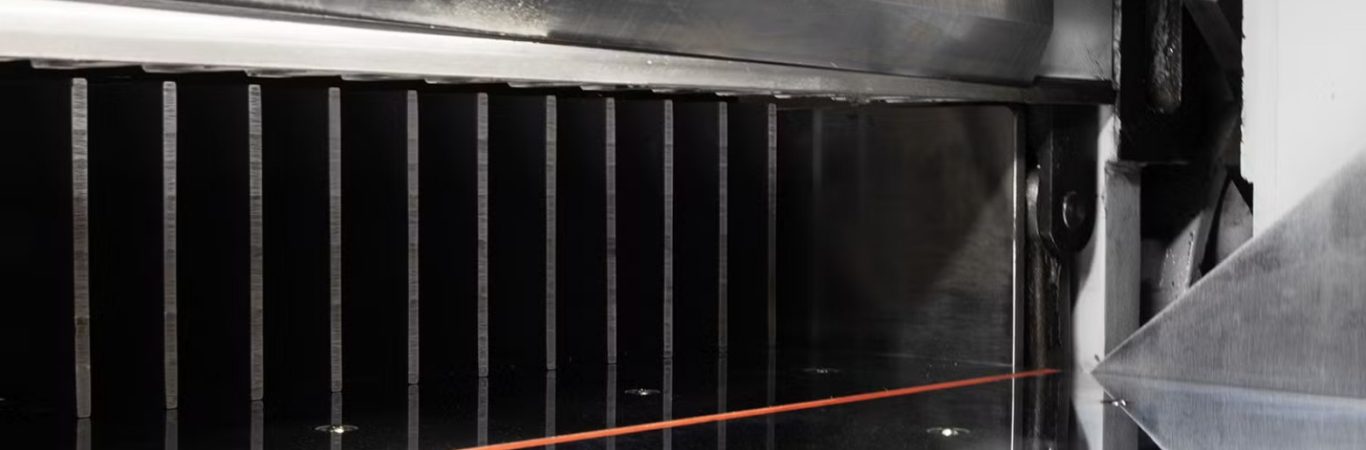

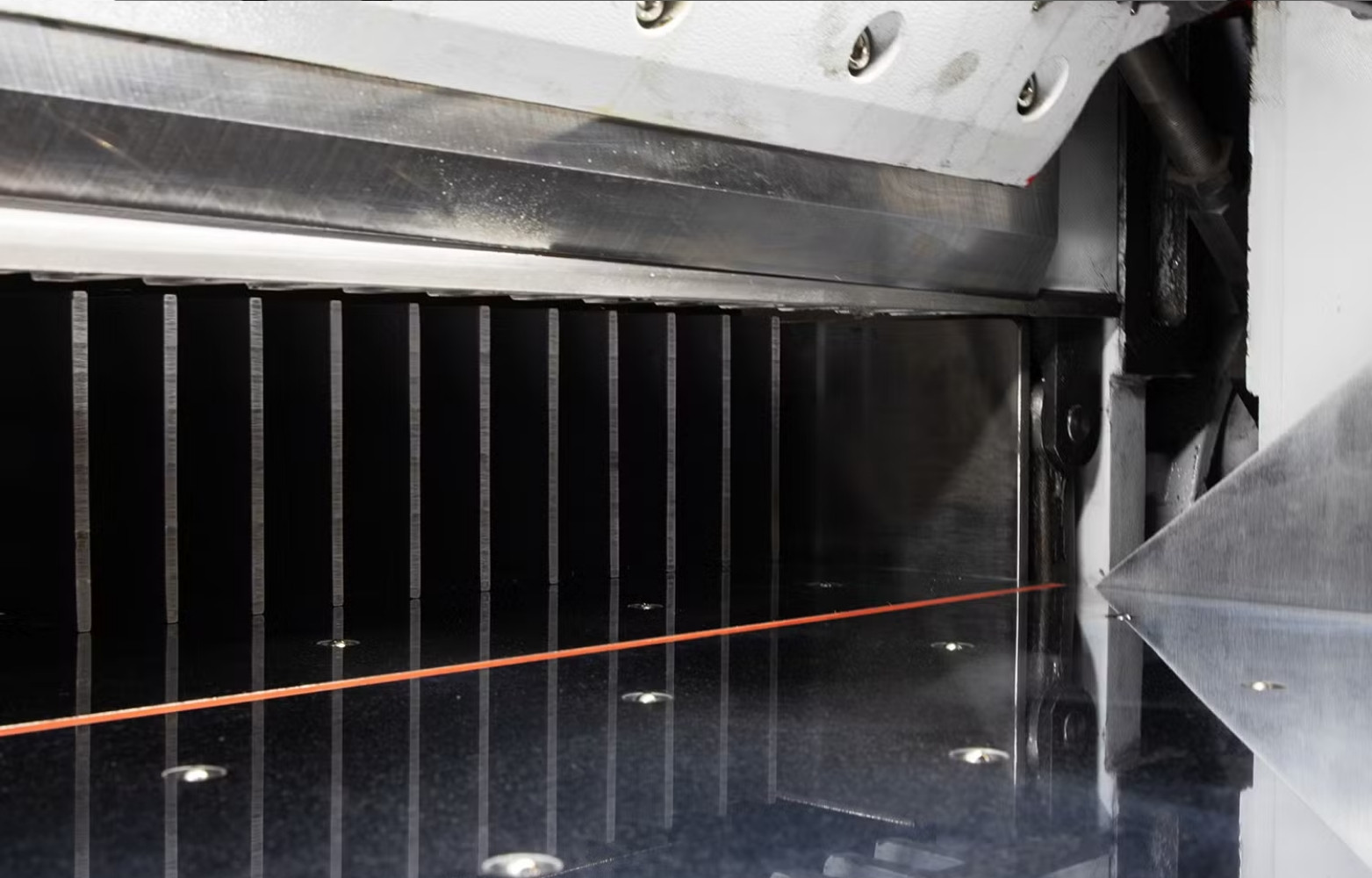

IR ray protective devices, optical knife-line alignment, and two-hand operation buttons enhance operational safety.
Product Details
The Guowei 115S is an advanced, high-precision paper cutting (guillotine) machine designed for industrial printing and finishing operations. With fully programmable control and digital servo systems, it offers speed, reliability, and exceptional accuracy for cutting a wide range of materials including paper, plastic films, cardboard, and more.
Specifications | Values |
| Cutting Width | 115/45.3″ |
| Max Cutting Height without Assistance Pressing Plate | 16.5/6.5″ |
| Max Cutting Depth | 115/45.3″ |
| Min Cutting Depth without Assistance Pressing Plate | 2.5/1″ |
| Extended Length of Working Table | 73/28.7″ |
| Height of Working Table | 88–92/34.6″x36.2″ |
| Machine Width Including Side Working Table | 266/104.7″ |
| Total Length of Working Table | 226/89″ |
| Cutting Speed | 45/47(双) |
| Max Paper Pressure | 40000 |
| Power of Main Motor | 4 |
| Motor for Paper Feeding | 0.75 |
| Air Pump | 0.75 |
| Machine Weight | 3900 |
| Overall Dimension (LxWxH) | 252×143×198 100″x57″x78″ |
| Blade Specificfication (LxWxH) | 139×16×1.37 54.7″x6.3″x0.54″ |
Advantages & Benefits
High Throughput
With fast cutting cycles and programmable sequences, throughput is maximized.
Ease of Operation
The intuitive touchscreen and diagnostics simplify operation and reduce training time.
Reduced Maintenance
Quality mechanical components reduce wear and extend service life.
Service Options
Management
管理
The performance management system is integrated with the 65 management system, and combined with the ERP system to achieve information and digital management.
Equipment
设备
Purchase advanced automation equipment, such as a pentahedron machining centre, to achieve high-precision and automated production.
Applications & Use Cases
Feature One
High-volume book or brochure finishing (trimming pages).
Feature Two
Precision cutting for packaging materials: films, foils, cardboard sheets.
Feature Three
Cutting of composite sheets, laminates, and specialty substrate.
Feature Four
Industrial printing houses, bindery units, packaging factories.
