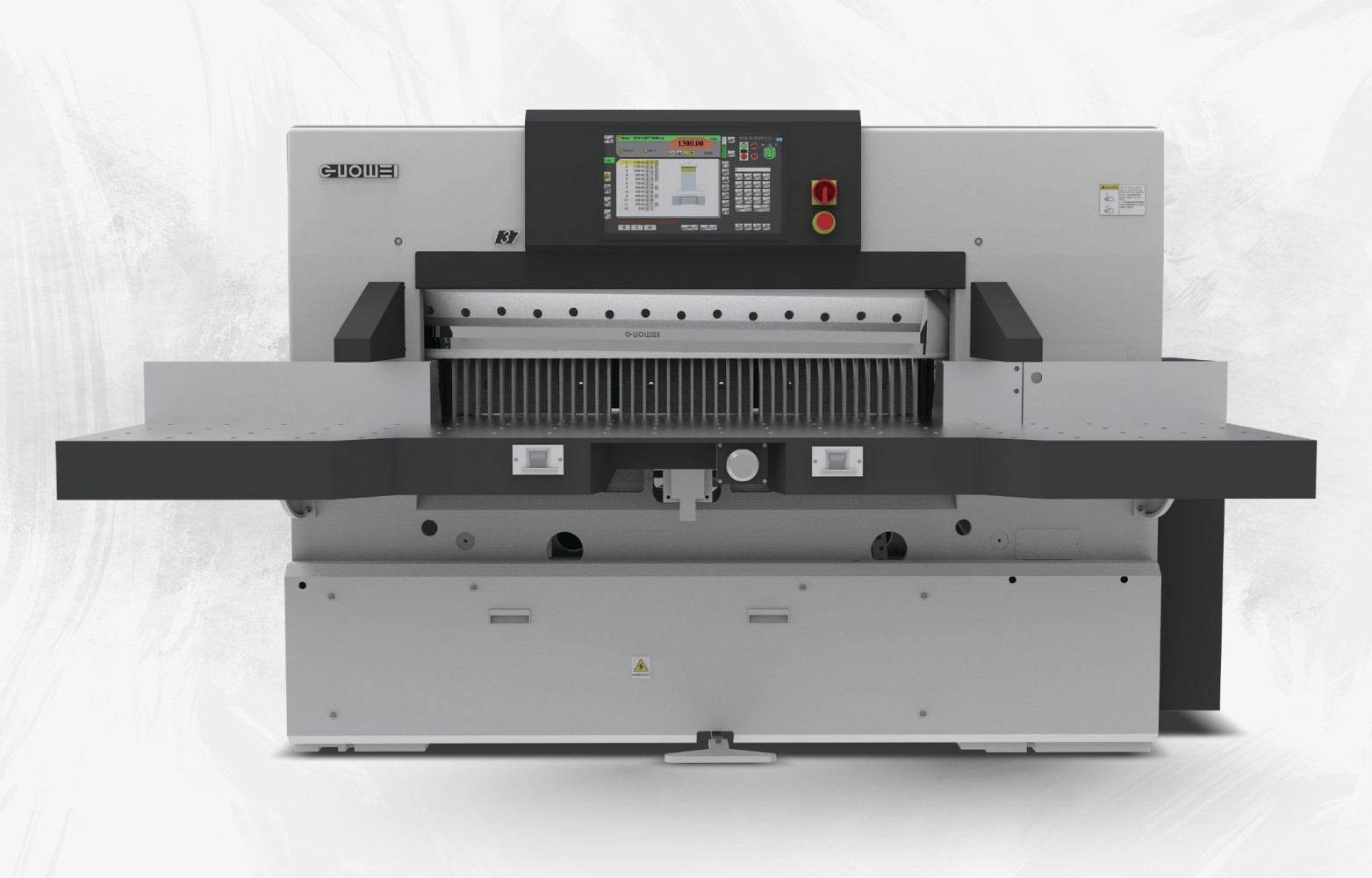

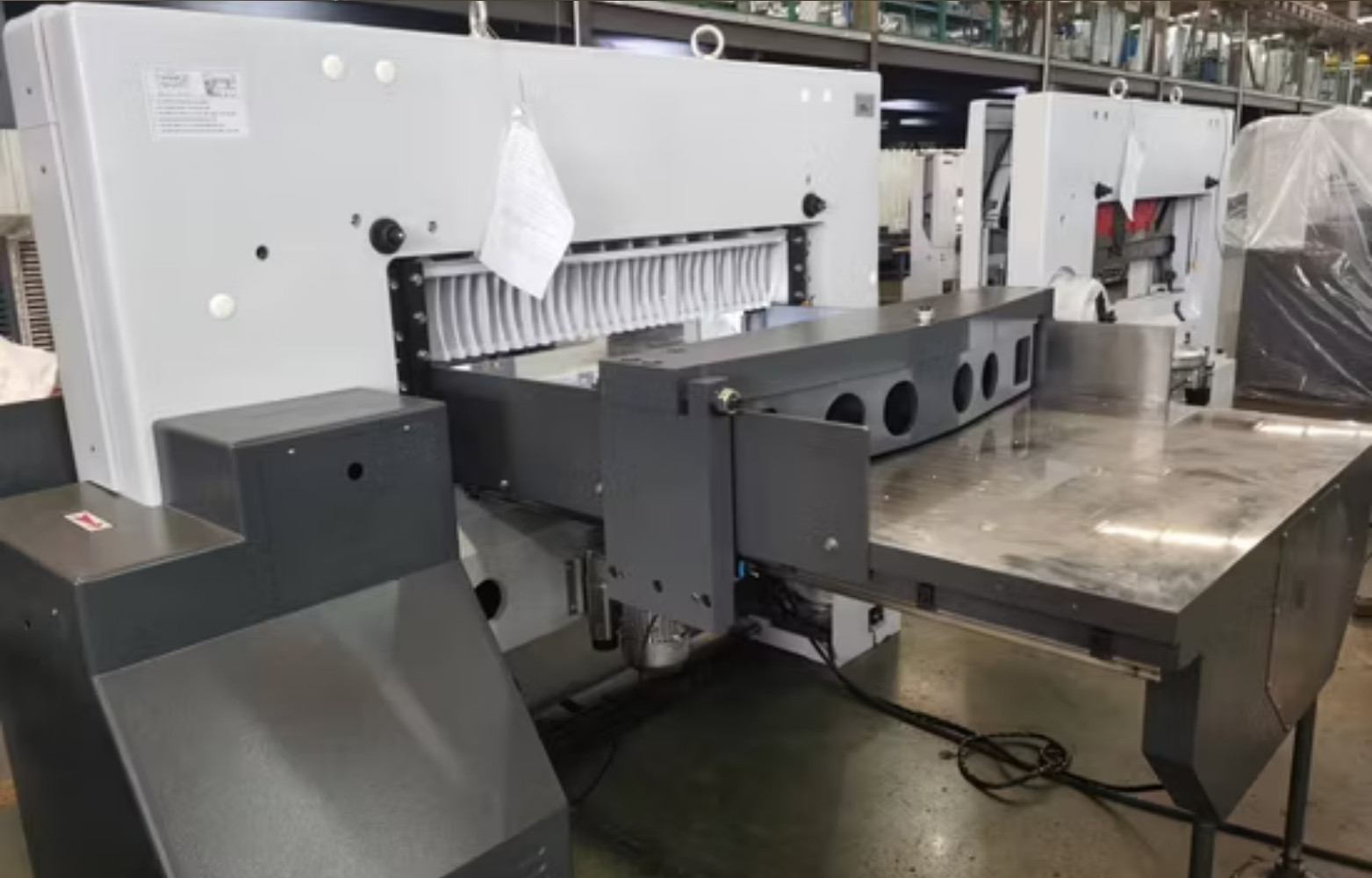

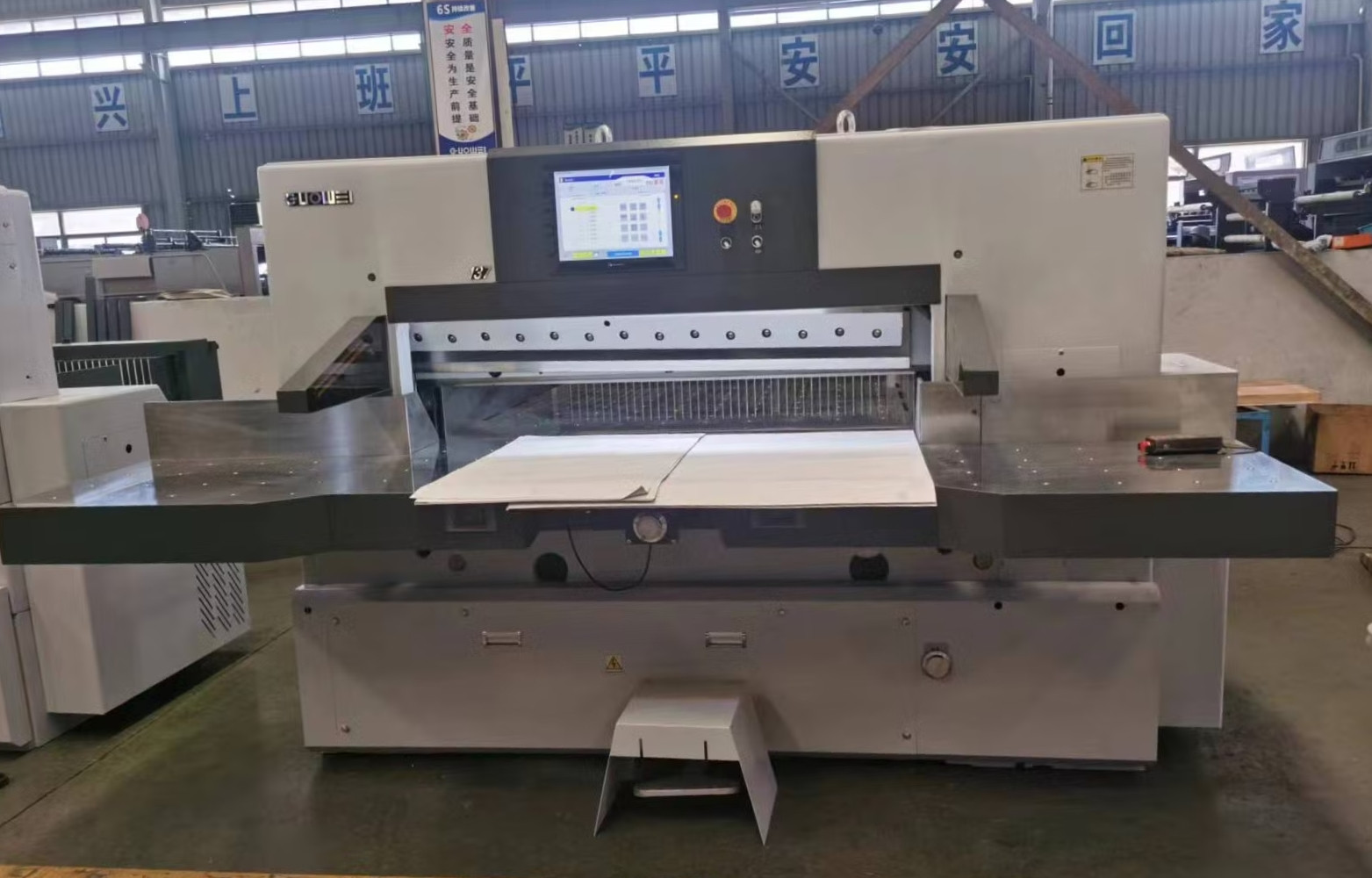

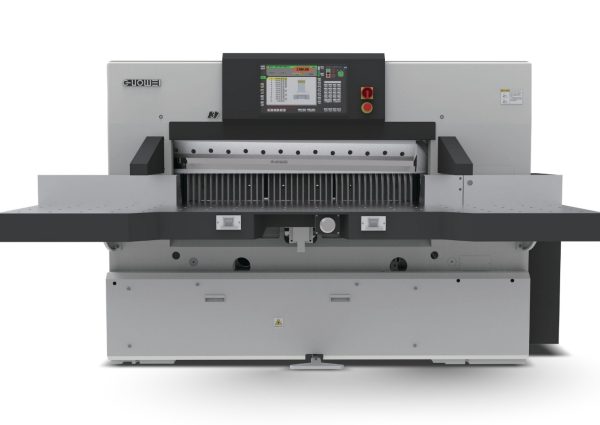

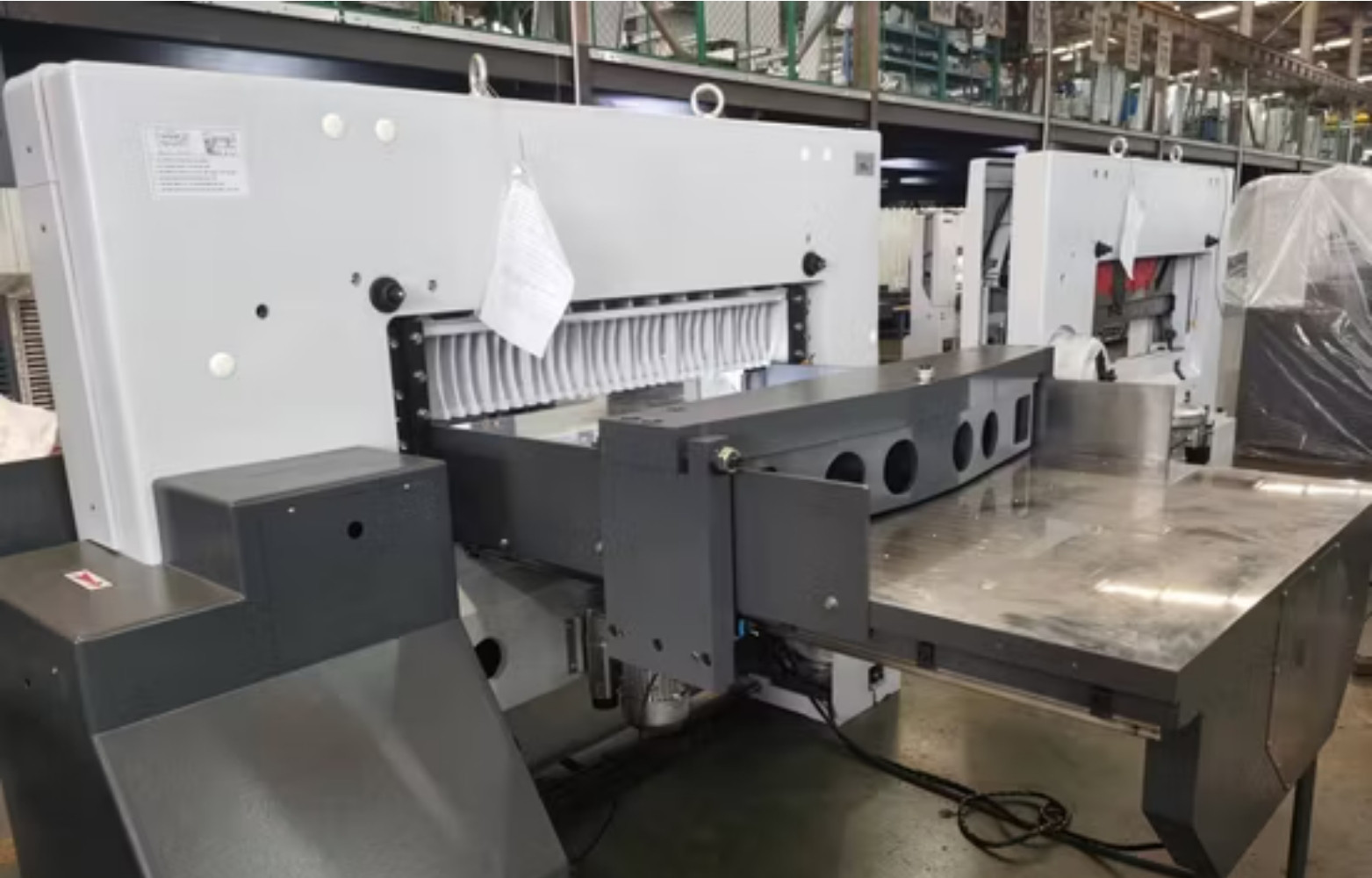

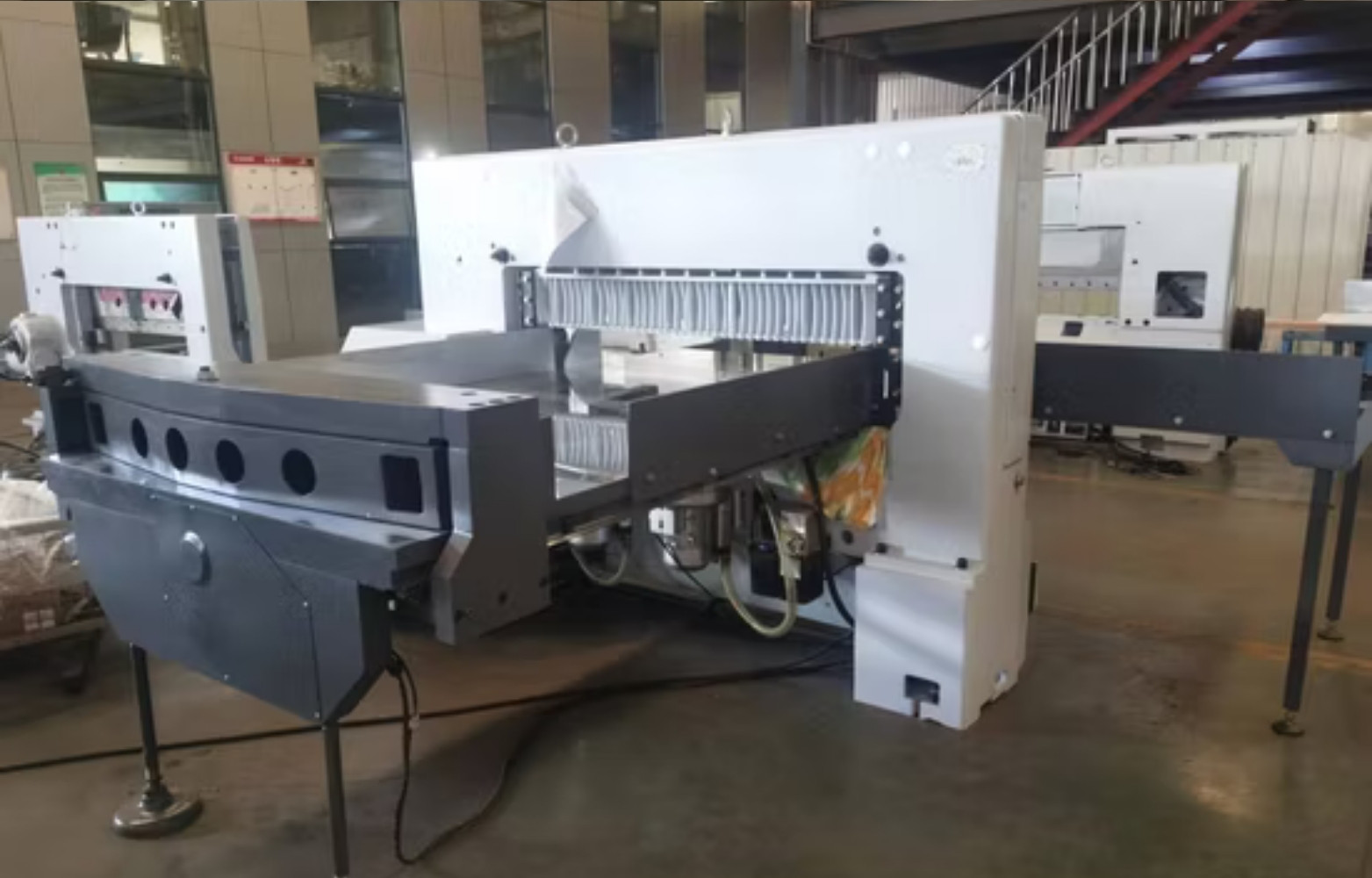

GUOWEI MODEL 137S
Heavy-Duty Program-Controlled Paper Cutting Machine.
Key Features & Highlights
- High data resolution (0.01 mm) for extremely accurate cuts.
- Programmable memory: capable of storing many program units and tens of thousands of cutting positions.
- Hydraulic components (from Japan / Italy / etc.) to deliver consistent clamping pressure and reliable performance.
- Lead screw and linear guide rails (e.g. Taiwan ABBA) for smooth backgauge movement.
- Cutting width: ~ 137 cm (≈ 54 in).
- Max cutting height (without false clamp / pressing plate): ~ 16.5 cm.
- Cutting depth: ~ 145 cm.
- Cutting cycles: ~ 45 cuts/min in many variants.
- Paper-pushing speed (backgauge movement) can range up to ~ 30 m/min depending on configuration.
- Large color touchscreen for setting programs, diagnostics, and real-time operation display.
- PLC-based control system to monitor both electrical and mechanical subsystems.
- Infrared or optical safeguards (knife-line alignment, protective devices).
- Automatic lubrication (on cutting parts) in many versions.
Product Details
The Guowei Model 137S is a high-performance, industrial guillotine/ paper cutting machine built for large-format cutting jobs, precision, and reliability. Suitable for printing houses, packaging plants, book breinding/finishing units, and other applications where large sheets and high throughput are needed. It combines advanced hydraulic drive systems, servo controls, computerized backgauge, and strong safety features.
Specifications | Values |
| Cutting Width | 137/54″ |
| Max Cutting Height without Assistance Pressing Plate | 16.5/6.5″ |
| Max Cutting Depth | 145/57″ |
| Min Cutting Depth without Assistance Pressing Plate | 3/1.2″ |
| Extended Length of Working Table | 74/29.1″ |
| Height of Working Table | 89–92/35″x36.2″ |
| Machine Width Including Side Working Table | 287/113″ |
| Total Length of Working Table | 259/102″ |
| Cutting Speed | 47 |
| Max Paper Pressure | 45000 |
| Power of Main Motor | 4 |
| Motor for Paper Feeding | 1 |
| Air Pump | 0.75 |
| Machine Weight | 4000 |
| Overall Dimension (LxWxH) | 274×158×204 – 108″x63″x81″ |
| Blade Specificfications (LxWxH) | 160.5×16×1.37 – 63.2″x6.3″x0.54″ |
Advantages & Benefits
High Throughput
Can handle large sheet sizes with good depth and height of cut.
Ease of Operation
Strong set of safety features and automatic functions (lubrication, diagnostics).
Reduced Maintenance
Durable components (hydraulic, bearings, guides) reduce maintenance and downtime.
Service Options
Management
管理
The performance management system is integrated with the 65 management system, and combined with the ERP system to achieve information and digital management.
Equipment
设备
Purchase advanced automation equipment, such as a pentahedron machining centre, to achieve high-precision and automated production.
Applications & Use Cases
Feature One
Large‐format sheet cutting: paper, cardboard, films, laminates.
Feature Two
High‐volume finishing jobs in packaging, book trimming, etc.
Feature Three
Situations where precision, reproducibility, and repeatability are important.
Feature Four
Environments where safety and automation reduce labor and error.
Summary / Selling Blurb
Experience unmatched cutting precision with the Guowei Model 137S Hydraulic Paper Cutting Machine ; a perfect blend of advanced technology, safety, and durability. Built for heavy-duty industrial performance, this model features a programmable control system, high-speed hydraulic operation, and servo-driven back gauge to ensure effortless, accurate, and consistent cuts every time.
Designed for printing houses, packaging units, and large-scale paper processing industries, the 137S delivers reliability and efficiency at every step. Its robust steel body, intuitive touchscreen interface, and advanced safety sensors make it the ideal choice for professionals seeking long-term productivity and flawless cutting results.
